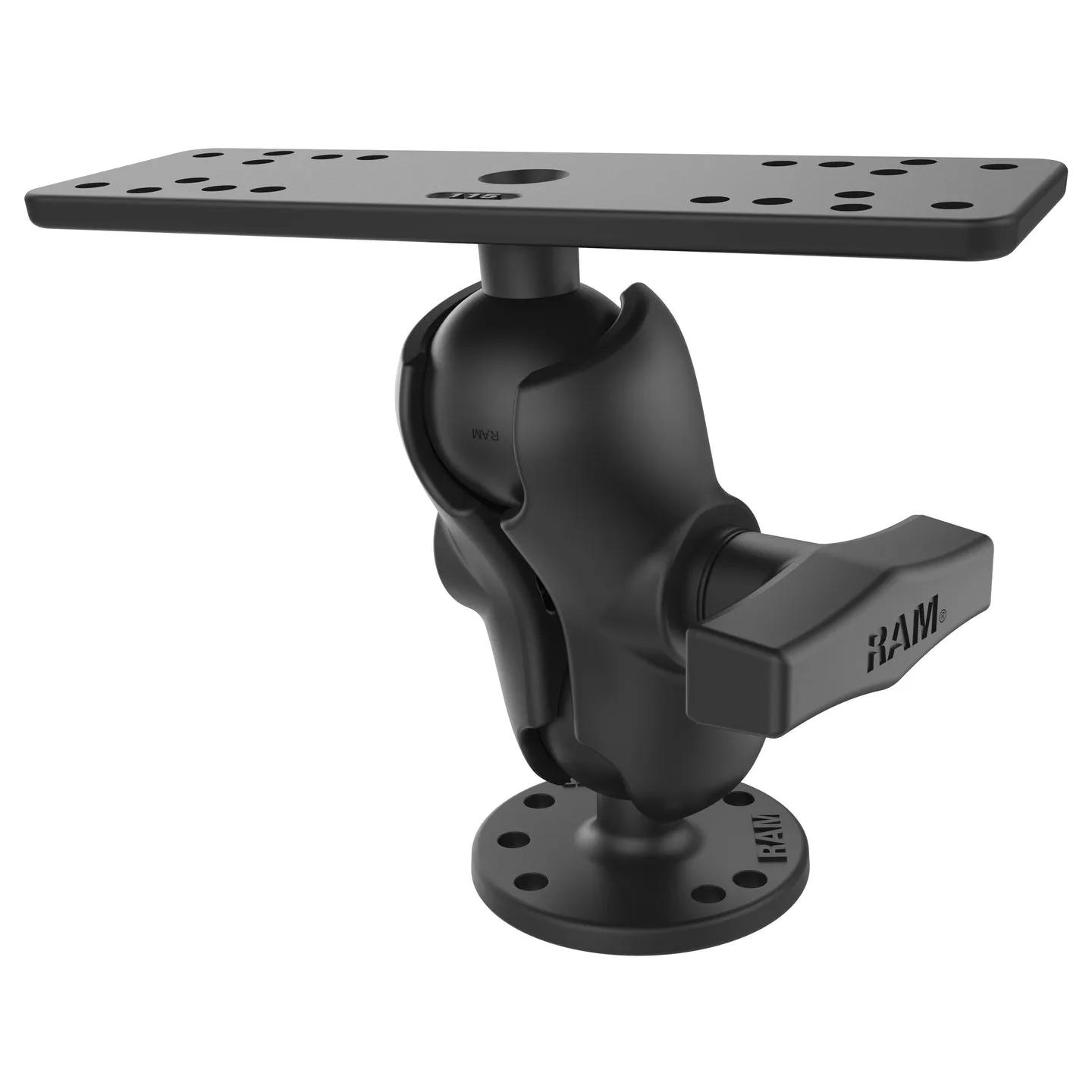

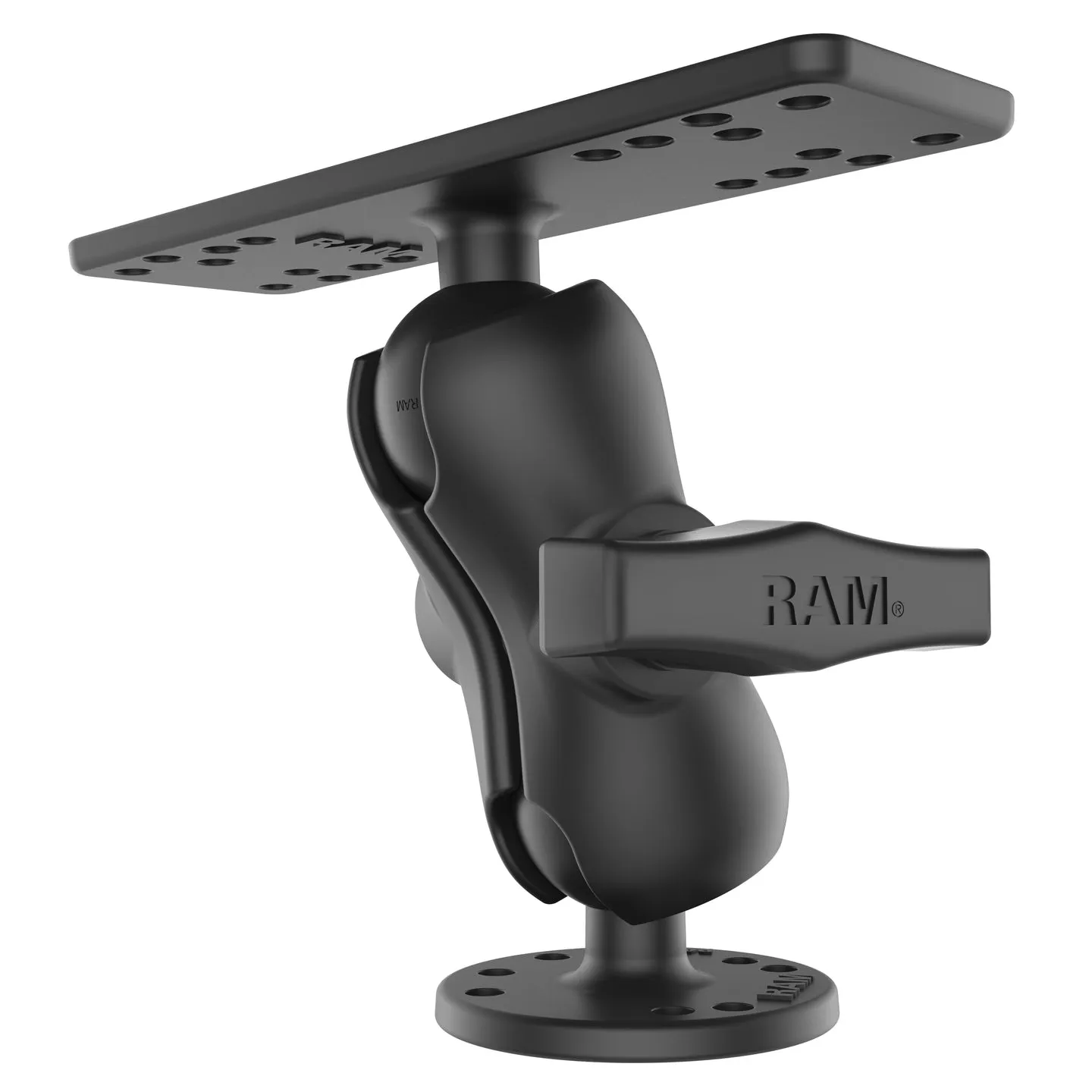

The RAM-111U-B consists of a short double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.
product dimensions
Overall Height: 5.225"
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
1.08 lb
Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
