Description
Complete "Mega" stretch tent and truss frame structure including aluminium truss frames, base plates and screws, and stretch tent cover
The MEGA range of multi purpose, extra-strong, truss frame structures are ideal for temporary stages, promotions or shelter.

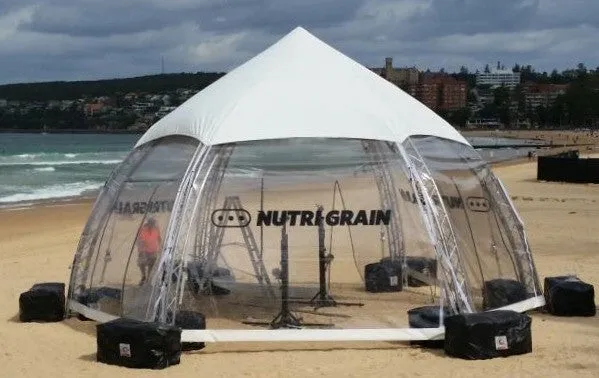

The entire super strong frame is made using Aluminium Box Truss, covered by strong flame retardant Bedouinflex Stretch fabric. Temporary and permanent fixing options are available, including integrated floor and ballast solutionsNutri Grain - 6 Leg Dome - by Stretch Marquees and Fabric Structures on Sketchfab
Specifications
- Easy and fast assembly is guaranteed by simple fixation system.
- Available in a broad range of sizes - with custom size options available
- from 4m dia all the way up to 20m dia
- Modular design with our connection tunnels to allow greater coverage or the creation of MEGA villages
- Structure variants:
- domes, cubes and shell shapes
- Skin Variants for walls
- PVC, Opaque PVC, Transparent PVC, Polyester, Bedouinflex Stretch Fabric
- A broad range of accessories and options are available. Including but not limited to
- Cooling, heating, internal elements, windows, doors, internal lighting and emergency illumination, full printing and ballast options, Frame reinforcement, Internal podiums, bar desk, staging, DJ desk, Flat TV and screen consoles, hangers etc.
- Compact design for easy storage and transport
| TYPE | |||||||||
| BASIC DATA | 700 | 1000 | 14000 | ||||||
| Diameter (mts / ft) | 7 / 23 | 10 / 33 | 14 / 46 | ||||||
| Height (mts / ft) | 3.8 / 12.5 | 4.2 / 14 | 5.5 / 18 | ||||||
| Floor Space (sqm) | 35 | 75 | 145 | ||||||
| Approximate capacity (people) | |||||||||
| Standing (Disco) | 45 | 95 | 185 | ||||||
| Standing (Cocktail) | 25 | 60 | 110 | ||||||
| Sitting (Cinema) | 30 | 65 | 130 | ||||||
