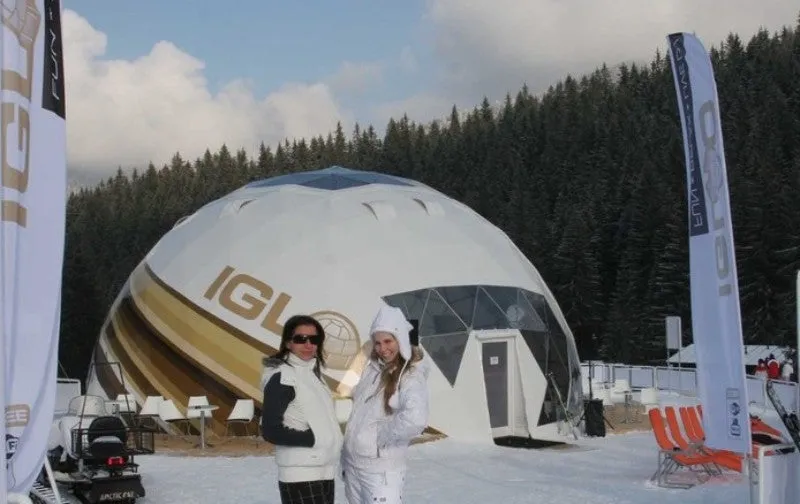

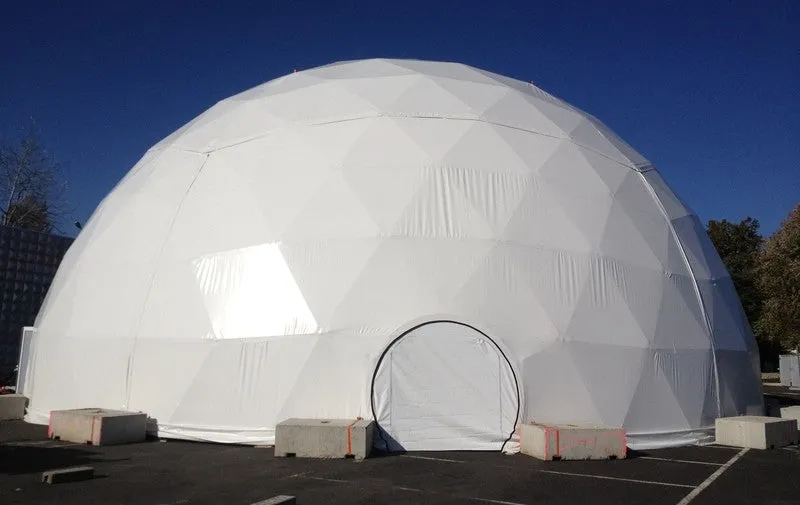

The IGLOO geodesic range of multi purpose, extra-strong, geodesic domes are ideal for temporary or permanent shelter.
The entire super strong frame is made using stainless steel or galvanized steel, covered by strong flame retardant PVC fabric. Temporary and permanent fixing options are available, including integrated floor and ballast solutions
- Easy and fast assembly is guaranteed by simple fixation system.
- European design and engineered
- Available in a broad range of sizes - with custom size options available
- from 6m dia all the way to 27m
- Modular design with our connection tunnels to allow greater coverage or the creation of dome villages
- Structure variants:
- Stainless steel (SS) or Galvanized steel (GS)
- Skin Variants:
- PVC, Opaque PVC, Transparent PVC, Polyester, Bedouinflex Stretch Fabric
- A broad range of accessories and options are available. Including but not limited to

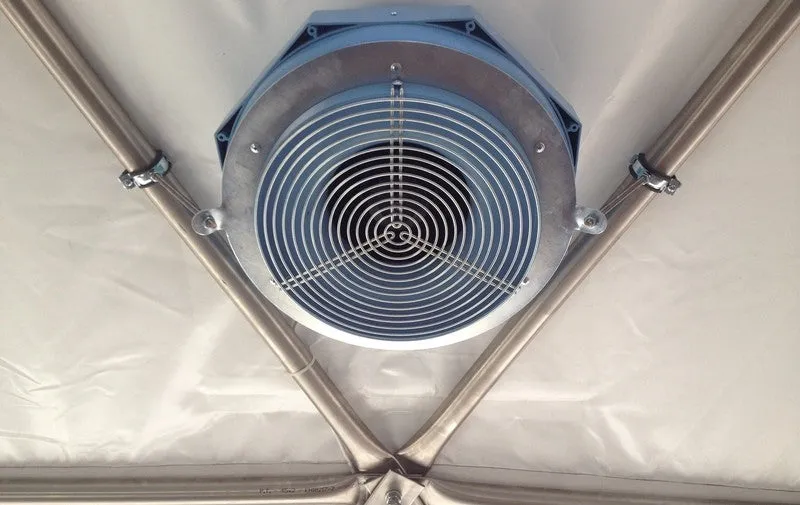

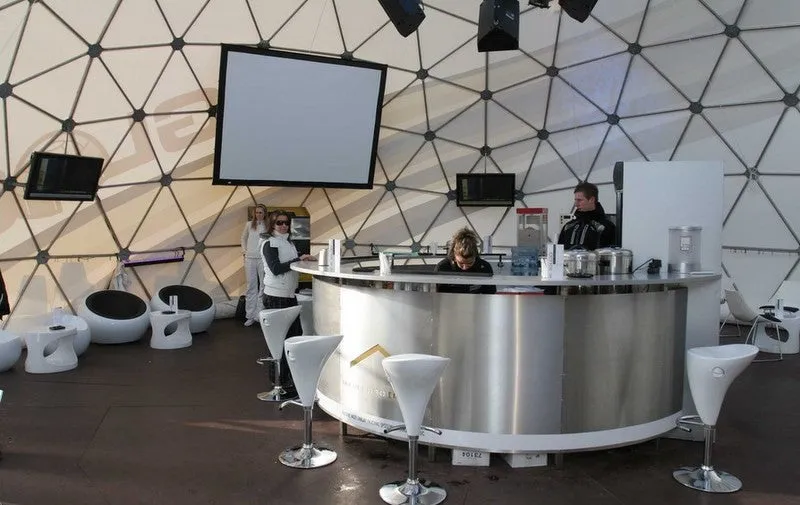

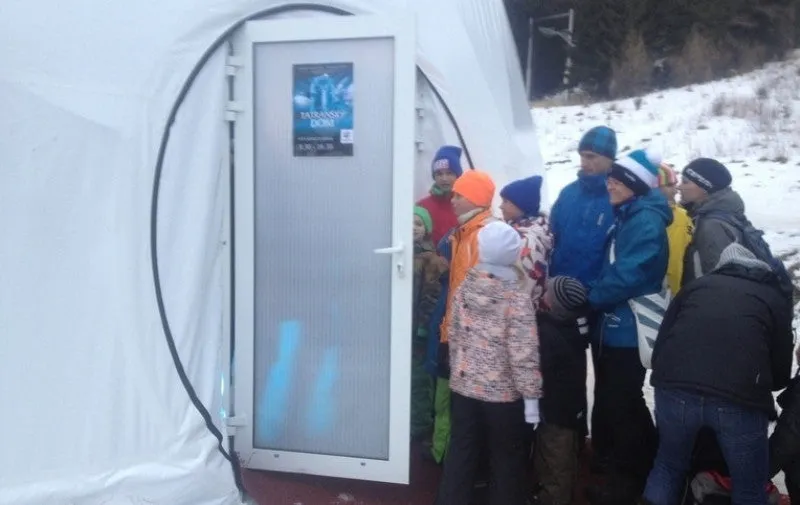

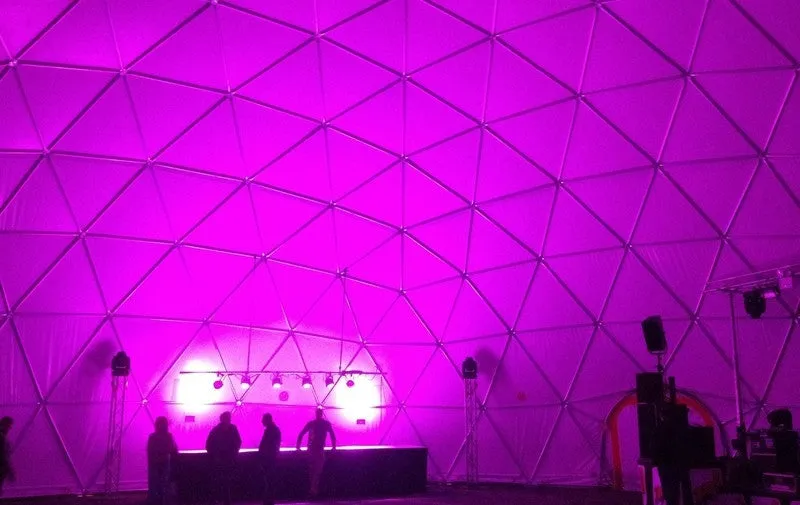

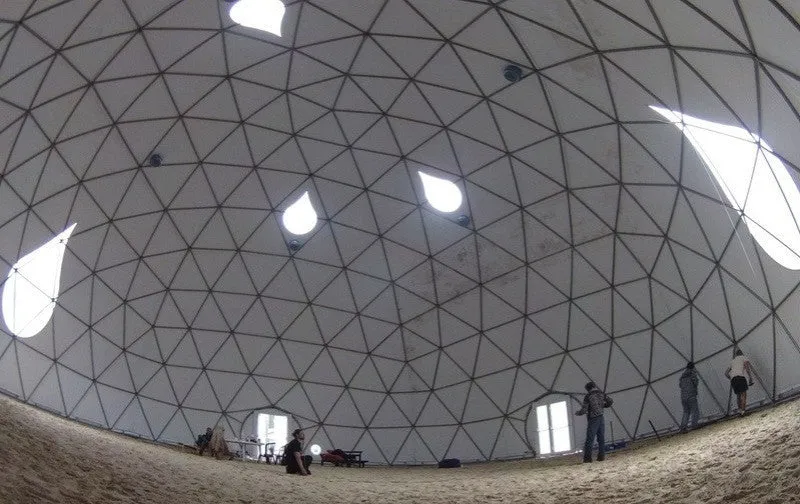

- Cooling, heating, internal elements, windows, doors, internal lighting and emergency illumination, full printing and ballast options, Frame reinforcement, Internal podiums, bar desk, DJ desk, Flat TV and screen consoles, hangers etc.
- Compact design for easy storage and transport
Specifications
| TYPE | |||||||||
| BASIC DATA | 600-4 | 800-4 | 1000-5 | 1250-6 | 1500-6 | 1800-6 | 2000-6 | 2100-6 | 2700-6 |
| Frequency | 4V | 4V | 5V | 6V | 6V | 6V | 6V | 6V | 6V |
| Diameter (mts / ft) | 6 / 20 | 8 / 26 | 10 / 33 | 12.5 / 41 | 15 / 50 | 18 / 60 | 20 / 66 | 21 / 70 | 27 / 90 |
| Height (mts / ft) | 3.5 / 12 | 4.6 / 15 | 5.7 / 18 | 6.2 / 20 | 7.5 / 25 | 9 / 30 | 10 / 33 | 10.5 / 35 | 13.5 / 45 |
| Floor Space (sqm) | 28 | 50 | 75 | 125 | 175 | 255 | 310 | 345 | 570 |
| Approximate capacity (people) | |||||||||
| Standing (Disco) | 40 | 70 | 115 | 180 | 260 | 380 | 460 | 520 | 860 |
| Standing (Cocktail) | 20 | 40 | 60 | 100 | 140 | 200 | 250 | 290 | 470 |
| Sitting (Cinema) | 22 | 45 | 80 | 110 | 165 | 45 | 290 | 320 | 530 |
Included in package

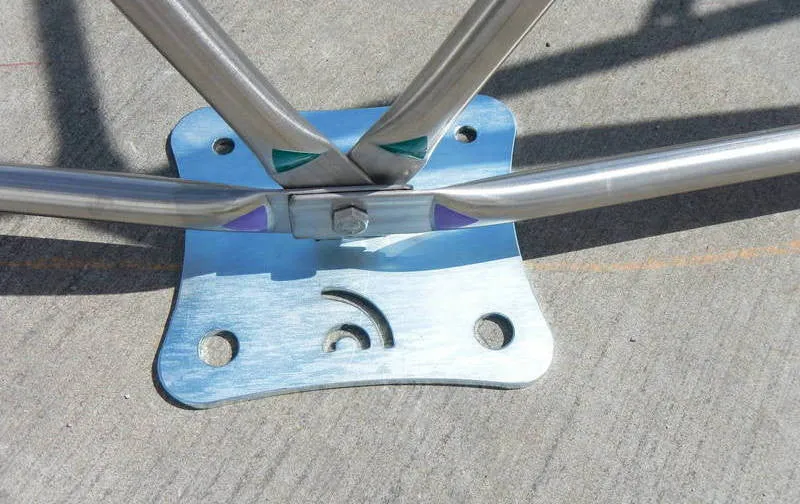

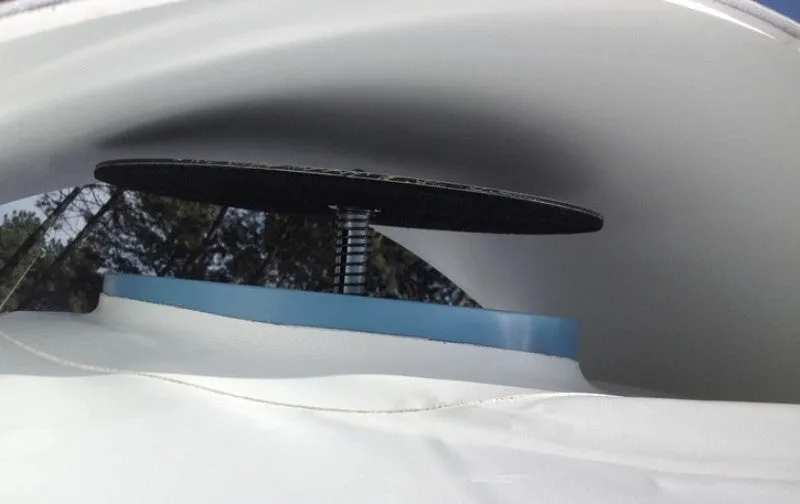

Complete dome consists of dome frame including 2 entrance frames, base plates and screws, cover including 2 zipper close GS = Galvanized steel (zinced) doors, transparent windows up to 5% of cover surface, 5x ventilation openings, special transport pallets and bags, documentation
