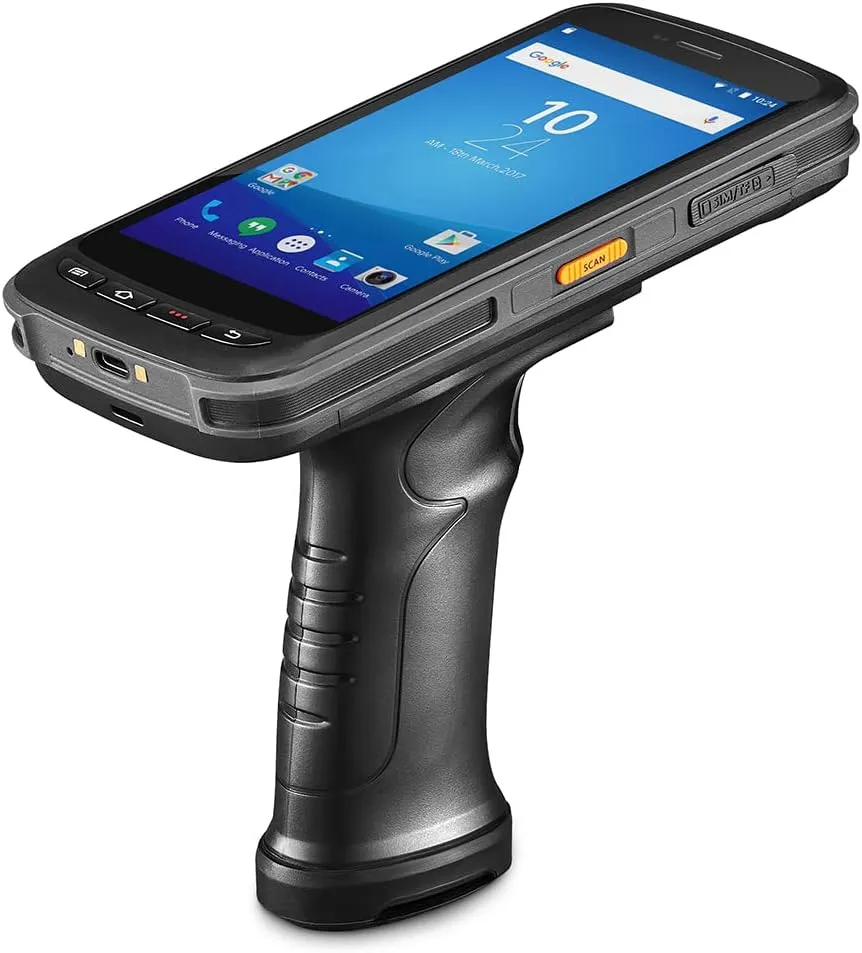

- POWERFUL HARDWARE SOLUTIONS — This handheld device adopts Cortex-A53 Octa core CPU & Android 11 OS, supports running multiple tasks smoothly. & It comes with 5.2'' 1920x1080 FHD screen, 13MP camera & Corning Gorilla Glass multi-touch panel which supports gloves and wet hands supported.
- PROFESSIONAL 1D 2D & QR BAR CODE READING — The built-in Zebra 2D imager scan engine provides extraordinary barcode data capturing capability. Support scan wedge function & different scan modes (trigger on press, continuous scan etc.). With pre-installed Keyboard Emulator, you can easily set barcode output formats, prefix/ suffix / check digits etc. With certified Google service, you can utilize Android-based inventory applications or develop customized warehouse management system.
- OUTSTANDING BATTERY DURABILITY — Integrated 8000mAH Li-ion battery for 12 hours working time. Standby time over 500 hours. Support quick recharging. No worries for power in the field.
- MULTIPLE WIRELESS DATA COMMUNICATION CAPABILITY — Support WiFi 802.11a/b/g/n dual bands, bluetooth 4.1, support WCDMA & 4G LTE for anytime anywhere connectivity (AT&T, T-Mobile cellular network & SMS). Support NFC/GPS.
- RUGGED & ERGONOMIC DESIGN— With rugged construction and IP65 rated sealing, workers can still expect reliable performance if they drop it carelessly, use it in dusty areas, or even get it wet. Suitable for enterprise field use in demanding industrial environment. The ergonomic trigger handle design ease using for intensive scan environment, improves work efficiency. For technical or after-sales issues, please write us at: [email protected].
Applications: shipping, logistics, transportation, warehouse management, stock control, food distribution, restaurant, retail shop, warehouse, commercial delivery, enterprise task allocation etc.
Physical Characteristics
Display: 5.2'' IPS FHD 1920x1080P
Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power: Li-ion, rechargeable, 8000mAh
Expansion Slot: 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces: USB2.0 Type-C, OTG
Audio: speaker, 2 microphones
Keypad: 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Sensors: Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor
Performance Characteristics
CPU: Cortex-A53 Octa-core 2.3GHz
RAM ROM: 3GB 32GB
Expansion: Supports up to 128 GB Micro SD card
Operation system: Android 11
Wireless connectivity
WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (America): 3G: WCDMA B1/B2/B4/B5/B8, 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/ B34/B38/B39/B40/B41
Bluetooth:v4.1 HS
GNSS: GPS/AGPS, GLONASS, BeiDou; internal antenna
Data Collection: Zebra SE4710 2D Imager Barcode Scanner
1D barcode Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D barcode Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Camera: 13MP Autofocus with flash
Developing Environment
SDK: Software Development Kit
Language Java
Tool: Eclipse / Android Studio
User Environment
Operating Temp.: -4℉ to 122℉ / -20℃ to 50℃
Storage Temp.: -40℉ to 158℉ / -40℃ to 70℃
Humidity: 5%RH - 95%RH non condensing
Drop Specification: Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete
