- MediaTek high performance GPS Chipset Very high sensitivity (Chip Tracking Sensitivity: -165 dBm). Extremely fast TTFF (Time To First Fix) at low signal level. Micro USB interface.
- Built-in LNA Built-in GPS Antenna Built-in GPS status LED(Red). Built-in Back up Battery. Includes a Micro USB to USB adapter cable for use with Windows & Mac OSX Laptops.
- Compact size (30.4 mm x 15.4 mm x 4.5 mm) suitable for portable application. Very low power consumption. Supports NMEA0183 V4.0(GGA,GSA,GSV,RMC). Supports SBAS (WASS, EGNOS, MSAS, GAGAN), QZSS.
- Requires Android device to have "USB Host" support & "PL2303 GPSInfo" app for Android to function. Compatible with Operating Systems: Android 3.2 ~ 6.0 ; Windows XP, Vista, 7, 8 & 10; Mac OSX 10.4 ~ 10.11 ; Linux Kernel 2.4.31 .
- This is a NMEA GPS Receiver. Compatible with most NMEA compliant navigation software (not included). For use with Windows 10 Apps, it requires a 3rd party tool to convert to a "GPS Sensor". Please read item description for details.

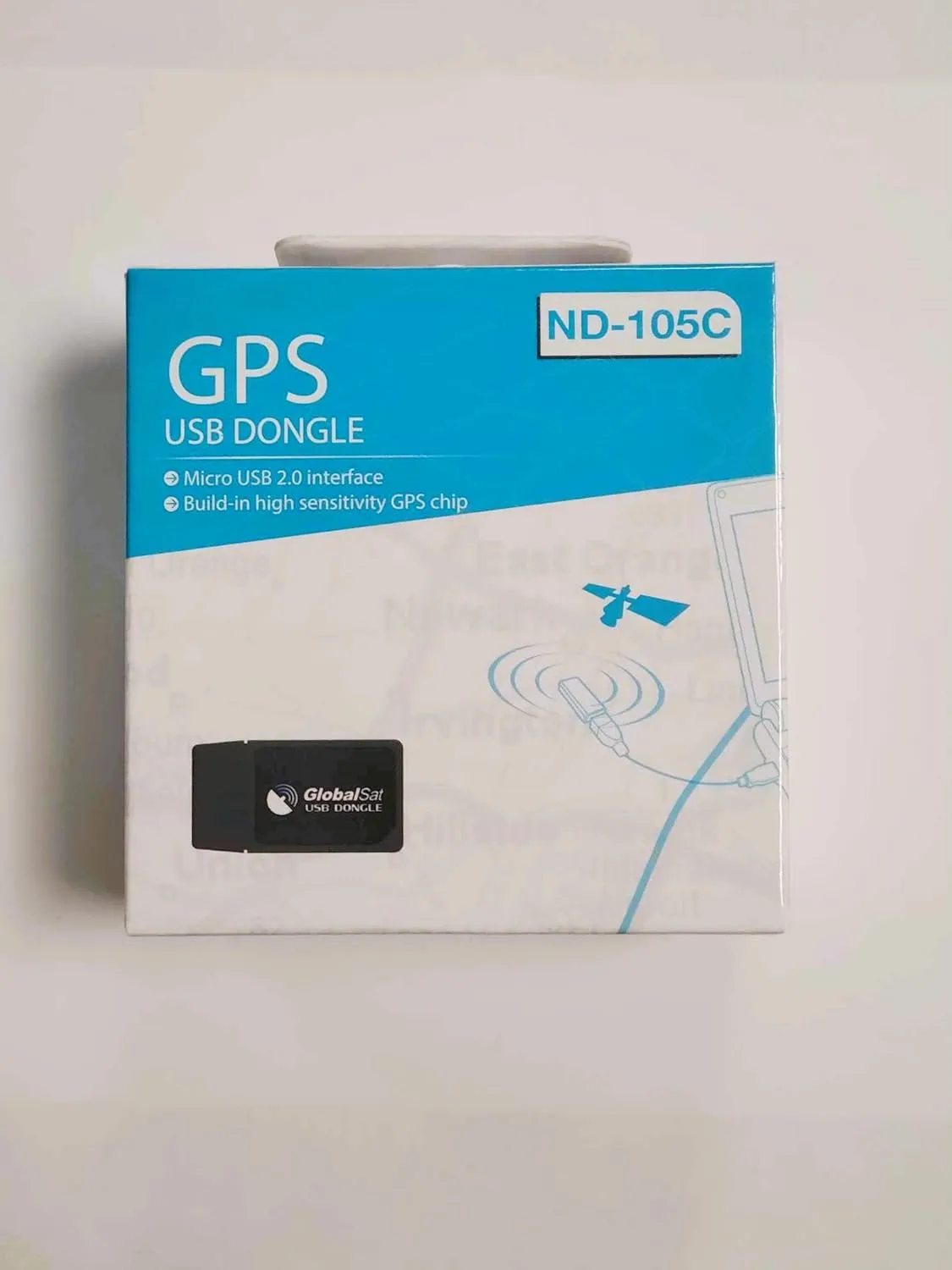

ND-105C features high GPS sensitivity, Micro USB interface, low power consumption and ultra small form factor. This product is powered by MTK GPS solution; it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. ND-105C supports up to 210 PRN channels. With 66 search channels and 22 simultaneous tracking channels, ND-105C acquires and tracks satellites in the shortest time even at indoor signal levels. Through ND-105C’s excellent low-power consumption characteristic, while using power sensitive devices, especially portable applications.
ND-105C PCBA with a simple ID design is suitable for the following device accessory:
● Smartphone (Android)
● Tablet (Android, Windows)
● Laptop (Windows, Mac OSX, Linux)
● Requires Android device to have "USB Host" support & "PL2303 GPSInfo" app on Android to function.
Product Features
● MediaTek high performance GPS Chipset
● Very high sensitivity (Chip Tracking Sensitivity: -165 dBm)
● Extremely fast TTFF (Time To First Fix) at low signal level
● Micro USB interface (includes Micro USB to USB Adapter cable)
● Built-in LNA
● Built-in GPS Antenna
● Built-in GPS status LED(Red)
● Built-in Back up Battery.
● Compact size (30.4 mm x 15.4 mm x 4.5 mm) suitable for portable application
● Very low power consumption
● Support NMEA0183 V4.0(GGA,GSA,GSV,RMC)
● Support SBAS (WASS, EGNOS, MSAS, GAGAN), QZSS
● Micro USB Supports Android, Linux, Windows (including 8.1 & 10) & Mac OSX operating systems
● Includes a Micro USB to USB adapter cable for use with Windows & Mac OSX Laptops.
For Android Setup instructions, please visit the USGlobalSat Forum here: or visit the ND-105C Support Page:
Unfortunately, the ND-105C is not compatible with Windows RT, Windows 8.1 RT or iOS Devices like iPad, iPhone or iPod Touch.
